Description

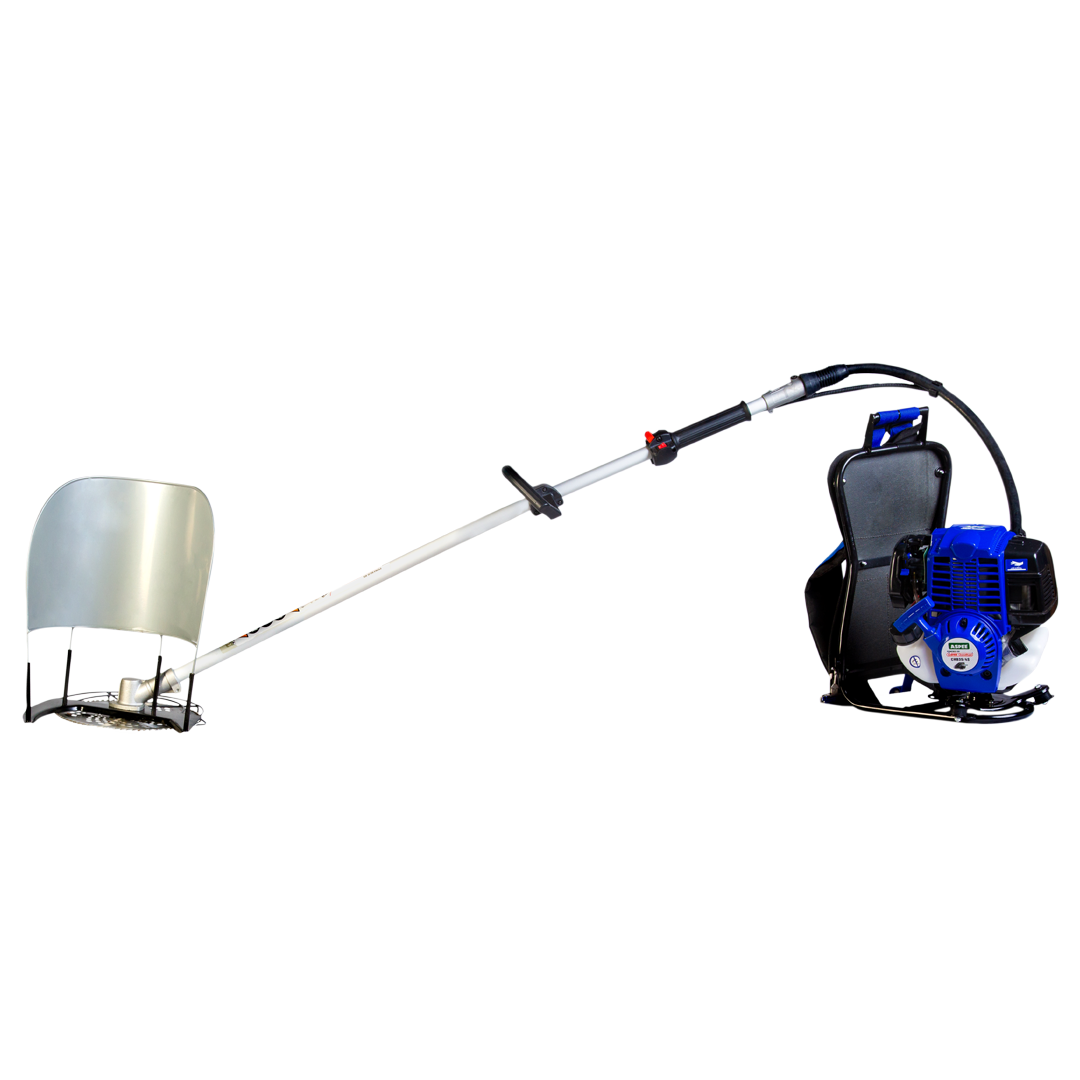

The ASPEE–Jonathan CHB35/4S is a powerful backpack type brush cutter designed for use as a crop harvester. It is an engine operated, back pack, hand held machine that makes harvesting and grass cutting fast and efficient. The strong construction and heavy duty components ensure reliable performance even in tough agricultural conditions.
It is suitable for harvesting crops such as paddy, wheat, maize, jowar, bajra and fodder for cattle. It is also ideal for cutting fresh and dry grass, small bushes and bamboo. The ergonomic design and anti vibration system help reduce operator fatigue during long working hours.
Sales Code: CHB35/4S
Technical Specifications
| Specification | Details |
|---|---|
| Outer Shaft Tube Diameter | 26 mm, serrated outer shaft |
| Outer Shaft Tube Thickness | 2 mm |
| Outer Shaft Length | 1380 mm |
| Drive Shaft Diameter | 8 mm |
| Flexible Shaft | Heavy armoured flexible shaft |
| Clutch Housing | Heavy clutch housing |
| Handle Holder | Heavy duty and comfortable |
| Gear Head | Heavy duty double bearing |
| Carry System – Backpack | Comfortable high metal base frame with padded belt |
| Standard Accessories | Trimmer head, 3T blade, 80T blade, crop harvester |
Multipurpose Engine – JX35
| Engine Specification | Details |
|---|---|
| Engine Type | Single Cylinder, 4 Stroke |
| Displacement | 35.8 cc |
| Rated Power | 1.13 HP / 0.85 kW @ 6500 rpm |
| Fuel Tank Capacity | 0.700 Liter |
| Gross Weight (Approx) | 14.060 kg |
Features
-
Effectively uproots weeds and supports tilling
-
Cost effective, saves labour and time
-
High performance engine for efficient operations
-
Ergonomic, anti vibration design reduces operator fatigue
The ASPEE–Jonathan CHB35/4S is a reliable and efficient solution for harvesting and cutting applications in agriculture.
