Description

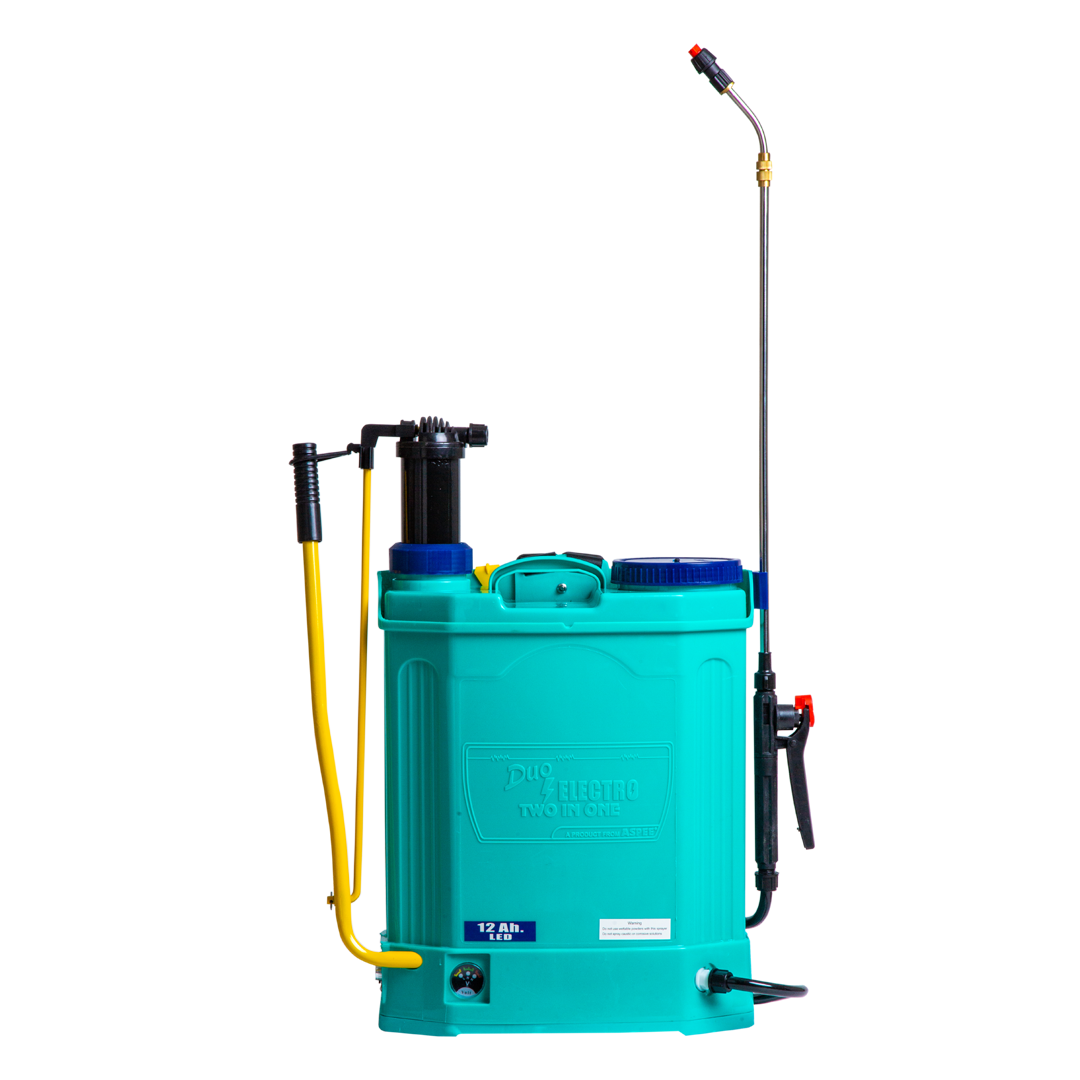

The ASPEE Duo Electro-2 is a dual type knapsack sprayer designed for large spraying operations in orchards, coffee estates and plantations. It is available in two battery options, 8AHBR and 12AHBR. The sprayer ensures uniform coverage and efficient chemical application while reducing spray drift and chemical wastage.
It is ergonomically designed with adjustable shoulder straps and a convenient battery housing, making it comfortable for extended use. A manual operating option is also provided, allowing use even when the battery is discharged.
Technical Description
Sales Code: ADE001/8AHBR & ADE001/12AHBR
| Specification | ADE001/8AHBR | ADE001/12AHBR |
|---|---|---|
| Tank Capacity | 16 Liters | 16 Liters |
| Pump | Electric motor operated 12V, 4 Litre/min | Electric motor operated 12V, 4 Litre/min |
| Pump Material | Polypropylene pump body, Viton valves, Santoprene diaphragm | Polypropylene pump body, Viton valves, Santoprene diaphragm |
| Battery | 12V / 8AH | 12V / 12AH |
| Charger | Input AC 220V, 50–60Hz, 12V DC | Input AC 220V, 50–60Hz, 12V DC |
| Spray Lance Type | Gooseneck type SS telescopic lance with brass union | Gooseneck type SS telescopic lance with brass union |
| Length of Lance | Min 55 cm – Max 100 cm | Min 55 cm – Max 100 cm |
| Working Pressure | Min 40 PSI – Max 60 PSI | Min 40 PSI – Max 60 PSI |
| Dimensions (L x W x H) | 380 x 210 x 535 mm | 380 x 210 x 535 mm |
| Weight with Battery (Approx) | 6.300 kg | 7.300 kg |
Key Features
-
Compatible with 12V 8AH and 12V 12AH batteries
-
16 liter plastic injection moulded tank with hot plate welding technology
-
Pressure regulator for low and high pressure control
-
Reduction of spray drift saves expensive chemicals
-
Cost efficient spraying with reduced time
-
Adjustable shoulder straps for comfort
-
User friendly design, easy to assemble, repair and maintain
-
Manual operation option available when battery is discharged
The ASPEE Duo Electro-2 offers dependable performance and efficient spraying for large scale agricultural and plantation use.
