Description
- Technical Specifications

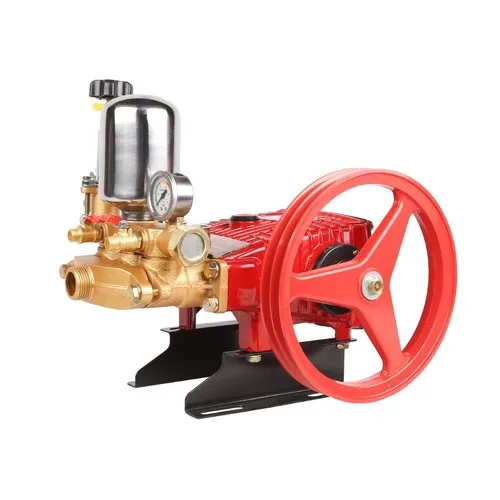

- Model: Senior HTP PS/15, Horizontal Triplex Piston Pump
- Flow Rate (Suction / Free Discharge): ~100 L/min at 600 RPM speedflow.co.in+9Aspee+9Aspee+9inputs.kalgudi.com+3Aspee+3Scribd+3
- Maximum Pressure: ~600 psi (≈ 42 bar) inputs.kalgudi.com+3Aspee+3Scribd+3
- Normal Operating Pressure: ~300–400 psi (~21–28 bar) Aspeekisan24.com
- Pump Speed: 600 RPM aajjo.com+9Aspee+9Aspee+9
- Power Required: ~10 HP (≈7.5 kW) prime mover kisan24.com+8Aspee+8Aspee+8
- Piston Count: 3 (Triplex) stainless‑steel pistons, horizontally mounted, with oil‑bath lubrication kisan24.com+6Aspee+6Scribd+6
- Material of Construction: Brass pump housing, stainless‑steel pistons, robust frame Aspee+2kisan24.com+2
- Max Spray Guns (Nozzles): Up to 4 simultaneous guns Aspeekisan24.com
- Weight (without oil & pulley): ~58 kg aspeeonline.com+3Aspee+3Scribd+3
- Approx. Dimensions (L × W × H): 686 × 482 × 355 mm Aspee
- 🧩 Key Features & Benefits
- ✔️ High-Capacity Triplex Pump
- The triplex horizontal piston design ensures steady flow of ~100 LPM, efficient at high pressure (up to 600 psi). Balanced pistons and oil bath lubrication reduce wear and maintenance needs AspeeAspee.
- ✔️ Multi-Purpose Use: Spraying & Irrigation
- Capable of handling both high-residue agricultural chemicals and water irrigation, making it ideal for diverse crop and plantation use—coffee, rubber, tea, orchards, vegetable farms Aspee.
- ✔️ Durable Construction
- Built with heavy-duty stainless steel pistons, brass housing, oil-bath lubrication, and rigid framework—engineered for long-lasting reliability in harsh field conditions Aspeekisan24.com.
- ✔️ High Pressure with Multi-Gun Setup
- Delivers 300–400 psi in normal operation and up to 600 psi maximum, easily supporting up to 4 spray guns for simultaneous application.
- 🌾 Typical Applications
- Commercial spraying in large orchards, high-rise plantations (coffee, tea, rubber), nurseries
- Field irrigation, especially for high-volume water delivery
- Dual-mode use: For spraying agrochemicals (including those requiring high pressure) and open irrigation needs Aspee
